Ratchet System ：THR CVR
Ratchet Gear：60T
O.L.D:100/131mm
Hole：Front16H/Rear21H
|
Specification |
Hub Model:R3 Rim Brake |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
7075 T651 AL Alloy |
|
|
Axle |
|
|
|
Cassette body |
|
|
Figure
|
Axle P.C.D |
Front17mm/Rear17mm |
|
|
Flange P.C.D |
Front29mm/Rear Drive33mm,Non33mm |
|
|
O.L.D |
100/131mm |
|
|
WR rear |
17.5mm |
|
|
Flange Distance |
Front76mm/Rear62mm |
|
|
The Distance From Drive Side Bearing to Frame |
51.7mm |
|
|
Hole |
Front16H/Rear21H |
|
|
Plait |
Front Radiate/Rear 2:1+X3 Cross-over |
|
Bearing |
Material |
TPI steel ball |
|
|
Sealed bearings |
Front6803*2 Rear6902*1+6803*1 Cassette6803*2 |
|

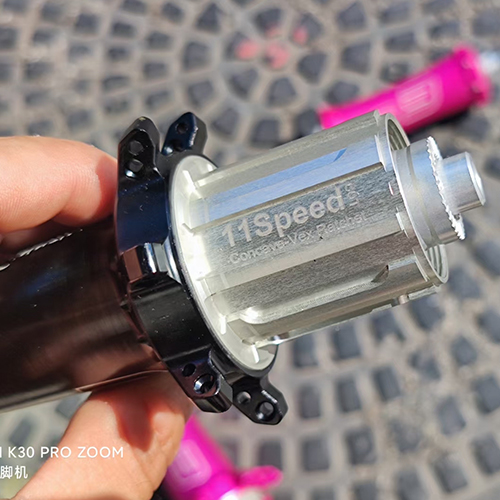

Cassette Ratchet System |
Ratchet Type |
THR CVR |
|
|
Ratchet Gear |
60T |
|
|
Angle |
6° |
|

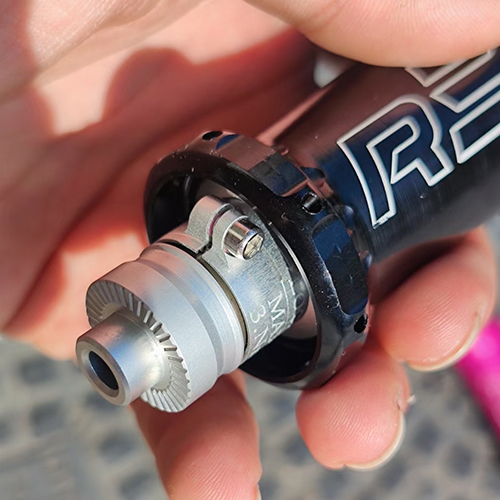

Side Axle System |
Interface |
Straight Pull quick release axle with bearing pre-compaction adjust |
|
|
Installation |
Plug-in |
|
Seal |
Seal*1+O-Ring*4 |
|
|
Cassette body model |
HG/XDR |
|
|
Usage Road |
HG |
|
|

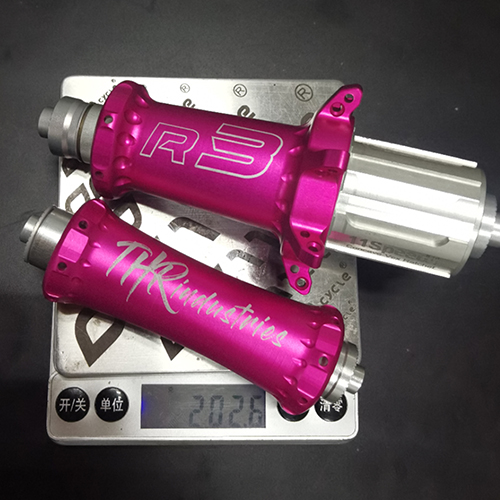

Weight |
Front 60+Rear137=197g |
|
|
Summarize |
Extremely light weight Smooth/Simple/Fast
|
|
