Ratchet System ：THR SSF II
Ratchet Gear：72T
O.L.D:110/148mm
Hole：Front28H/Rear28H
|
Specification |

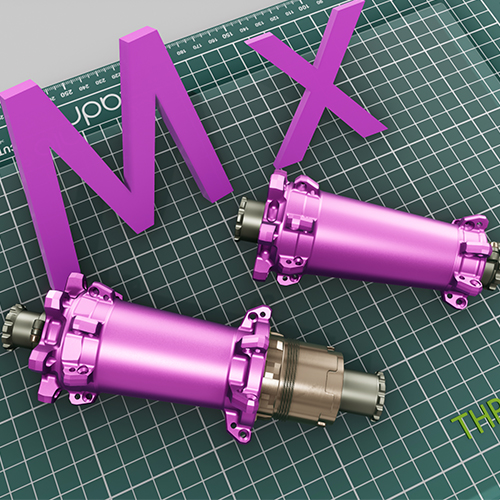

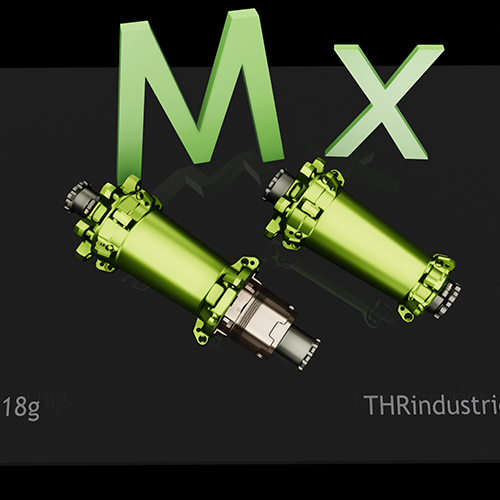

Hub Model:MX Straightpull |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
Super AL Alloy |
|
|
Axle |
|
|
|
Cassette body |
Titanium Alloy |
|
Figure
|
Axle P.C.D |
Front17mm/Rear17mm |
|
|
Flange P.C.D |
53mm(L/R) |
|
|
O.L.D |
110/148mm |
|
|
WR rear |
148=27mm |
|
|
The Distance From Drive Side Bearing to Frame |
51mm |
|
|
Hole |
Front28H/Rear28H |
|
|
Plait |
Front28/Rear28 |
|
Bearing |
Brand |
Custom Stainless Steel Ring /Ceramic Bearing |
|
|
Sealed bearings |
Front6803*2/Rear6903*2+6803*2 |
|
Cassette Ratchet System |
Ratchet Type |
THR SSF Low Drag I I |
|
|
Ratchet Gear |
72T |
|
|
Angle |
5° |
|
Side Axle System |
Interface |
Straight Pull quick release axle with bearing pre-compaction adjust |
|
|
Side installation |
Plug-in |
|
Seal Ring |
No |
|
|
Cassette body model |
XD(first batch,custom admissibility) |
|
|
Usage Road |
XC/TR |
|
|
Weight |
215g |
|
|
Summarize |
Top of X family Smooth/Simple/Fast
|
|
