Spoke lacing pattern :28H ,3X

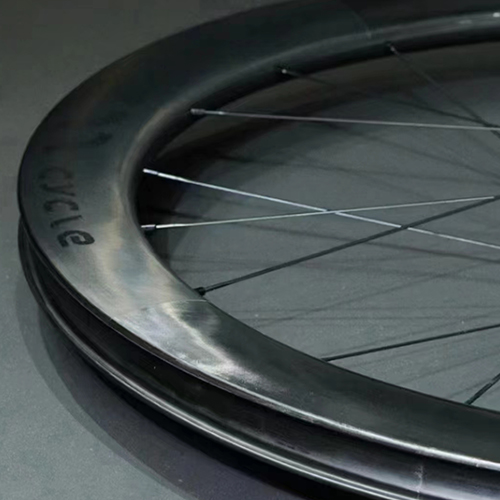

Rim Depth:38/45/55mm
Rim Wide:Inner21mm Ourter28mm
Spoke Type: Carbon Fibre/Steel flat /Reducing Spoke

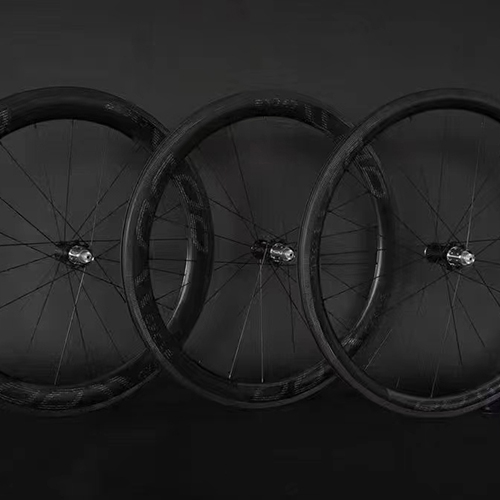

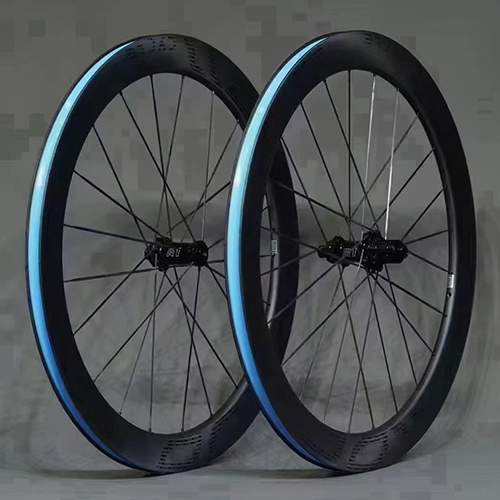

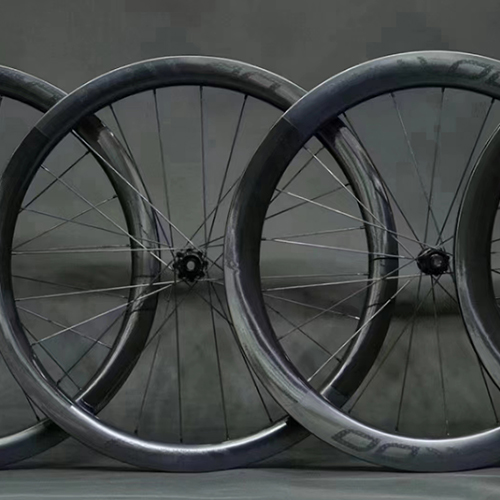

| 0011Cycle 1 Road Bike Configuration Introduction | |||
| Item | R1 Disc Brake | ||
| R1 Reducing Spoke | R1 Carbon Spoke | R1 Steel flat Spoke | |

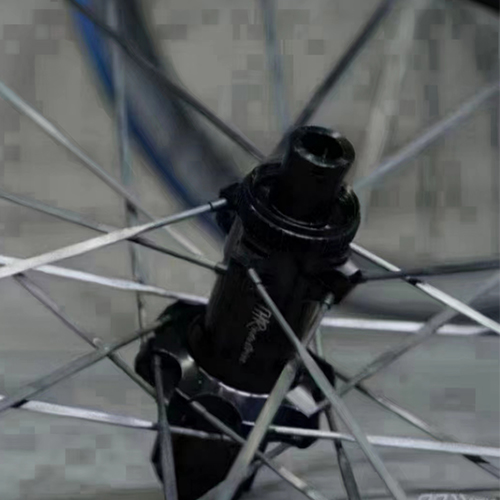

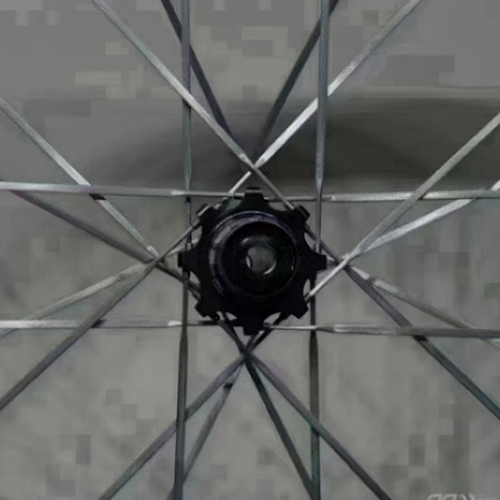

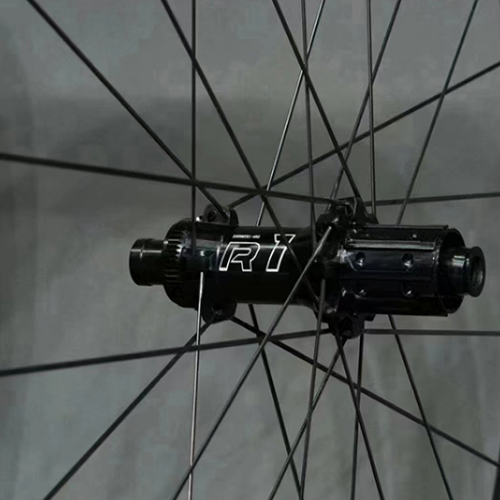

| Hub Type | R1 Straight pull Center Lock disc brake | R1 Straight pull Center Lock disc brake Carbon spoke(big flange) | R1 Straight pull Center Lock disc brake |
| Tire Type | pro+ | pro+ | pro+ |
| Rim Depth | 38/45/55mm | 38/45/55mm | 45MM |
| Rim Wide | inner21mm outer28mm | Inner21mm Ourter28mm | Inner21mm Ourter28mm |
| Bering | HCH Steel ball bearing | HCH Steel ball bearing | HCH Steel ball bearing |
| Hub Structure | Ratch Pawl 36T | Ratch Pawl36T | Ratch Pawl 36T |

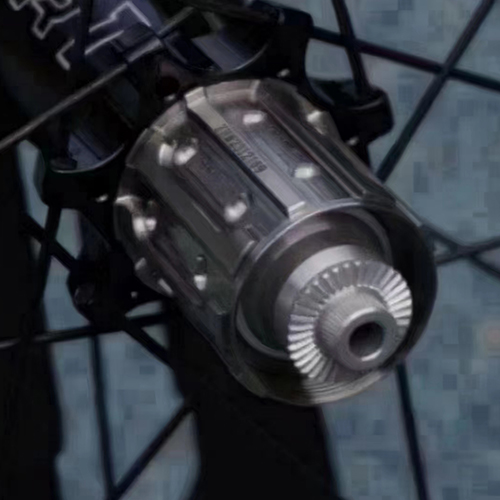

| Cassette shell material | 7075 T651 Aliuminium alloy | 6061 Smithing | 7075 T651 Aliumimum Alloy |
| Spoke holes weaving | 24/24, 1:1 2X | 21/24 ,2:1 3X | 24/24 ,1:1 2X |
| Spoke Type | SAPIM Sprint Reducing spoke | Carbon Fiber Bladed Spoke | SAPIM CX-ray Bladed Spoke |
| Wheelset Weight | 35/45/55mm 1440/1490/1550g±3% | 38/45/55mm 1360/1410/1470g±3% | 1480g±3% |
| Max Tire /inner tube Pressure | Tire≤100psi / Inner tube≤120psi | ||
| Max Ride Weight | 130KG | 130KG | 130KG |
| Rim Depth Recommended（level road+gentle slope+abrupt slope percentage） | 38mm（55%+25%+10%） 45mm（75%+20%+5%） 55mm(90%+10%+0%） | 38mm（40%+40%+20%） 45mm（60%+30%+10%） 55MM(70%+25%+5%） | 45mm（75%+20%+5%） |
| BTW,Wheelset can be update to ratch 60T,cassette material titanium alloy/XDR cassette available,more details please contact us! | |||
