Spoke lacing pattern :21/24H ,2:1 3X
Rim Depth:46/55/66mm
Rim Wide:Inner23mm Outer31mm
Spoke Type:SAPIM CX-rayBladed Flat Spoke
| Item | R3 Disc Braking | |
| R3U | R3S | |

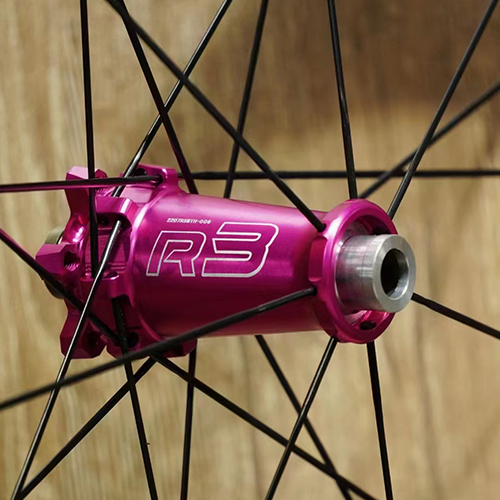

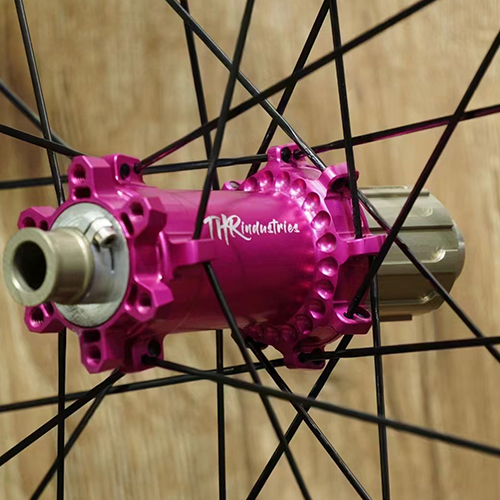

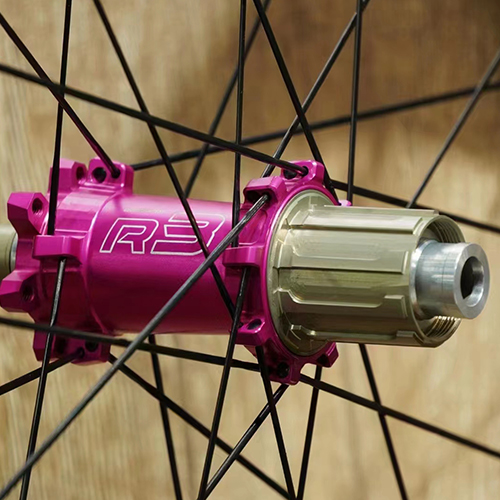

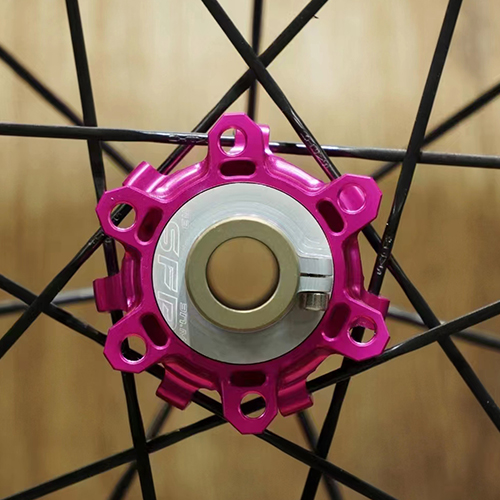

| Hub Type | THRindustries R3 Ultralight Disc Brake Pawl6 Straight pull | |
| Tire Type | Ultralight | Super Ultralight |

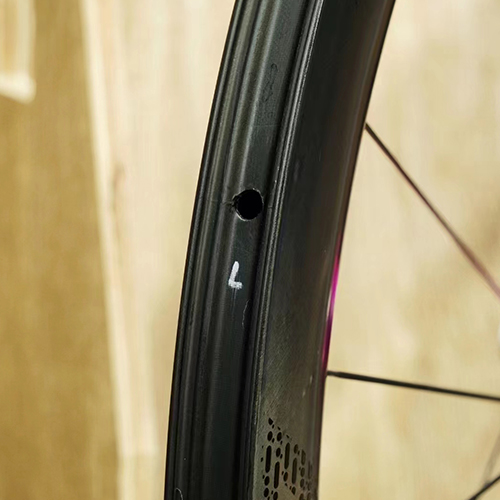

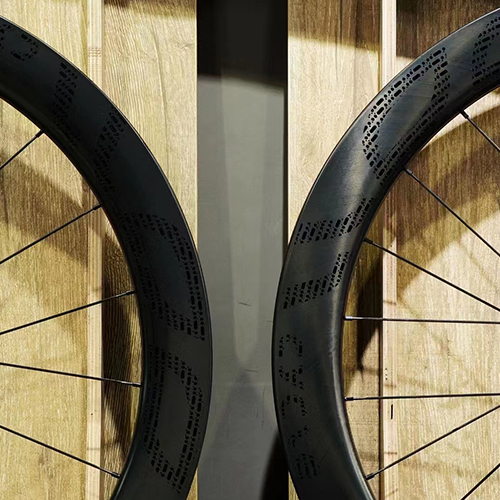

| Rim Depth |
46/55/66mm |
|
| Rim Wide | Inner23mm Outer31mm | |
| Bering | Taiwan CEMA G5 Ceramic | |
| Hub Structure | CVR Patent Pawl 60T | |
| Cassette shell material | 7075 T651 Aliuminium alloy | |
| Spoke Type | SAPIM CX-rayBladed Flat Spoke | SAPIM Super CX Blacded Flat Spoke |
| Spoke holes ,lacing pattern | 21/24H ,2:1 3X | |
| Weight | 46/55/66mm 1250/1310/1370g±3% | 46/55/66mm 1220/1290g/1330g±3% |
| Rim Depth Recommended（level road+gentle slope+abrupt slope percentage） | 35mm（50%+30%+20%） 45mm（65%+30%+10%） 55mm(85%+10%+5%） | 46mm（55%+25%+20%） 55mm(70%+20%+10%） |
| Max Tire /inner tube Pressure | Tire≤100psi / Inner tube≤120psi | |
| Max Ride Weight | 100KG | 100KG |
