Ratchet System ：Star Ratchet
Ratchet Gear：36/60T
O.L.D:100/142mm
Hole：Front24H/Rear24H
|
Specification |

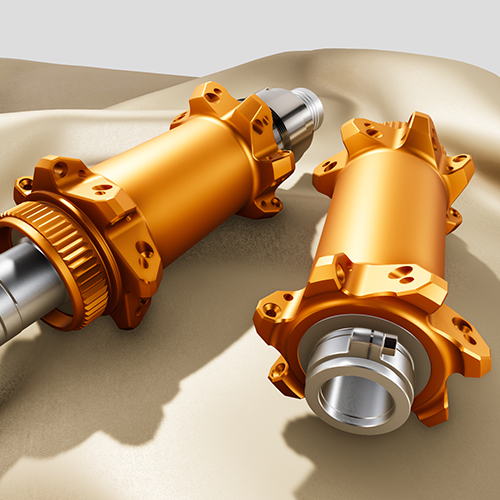

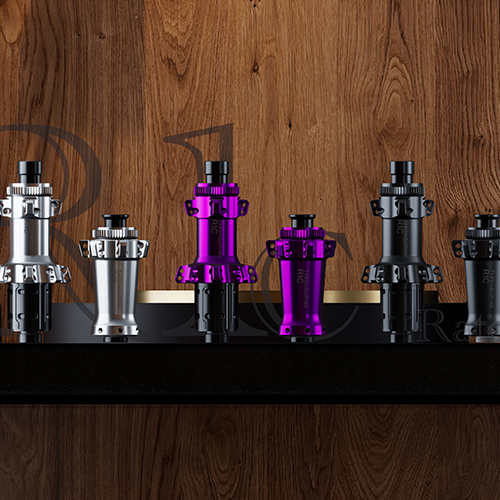

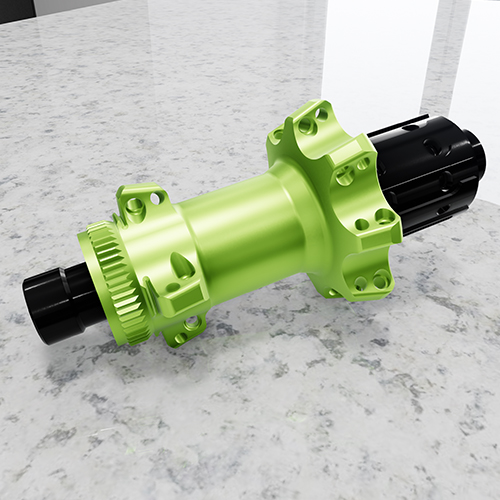

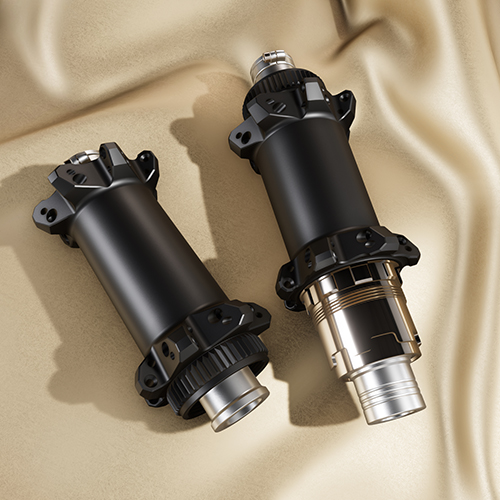

Hub Model:R1 Disc Brake |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
7075 T6 AL Alloy |
|
|
Axle |
|
|
|
Cassette body |
|
|
Figure
|
Axle P.C.D |
Front15mm/Rear15mm |
|
|
Flange P.C.D |
Front:Drive43mm Rear: Drive47mm/Disc40.5 |
|
|
O.L.D |
100/142mm |
|
|
WR rear |
22mm |
|
|
Flange distance |
Front55mm/Rear56mm |
|
|
The Distance From Drive Side Bearing to Frame |
58.4 |
|
|
Hole |
Front24H/Rear24H |
|
|
Plait |
1:1 |
|
Bearing |
Material |
TPI/EZO steel ball |
|
|
Sealed bearings |
Front/Rear6902*2/Cassette6802*2 |
|
Cassette Ratchet System |
Ratchet Type |
Star Ratchet |
|
|
Ratchet Gear |
36/60T |
|
|
Angle |
10/6° |
|
Side Axle System |
Interface |
Retainer Ring Type |
|
|
Side installation |
Plug-in |
|
Seal Ring |
1pcs |
|
|
Cassette body model |
HG/XDR |
|
|
Usage Road |
HG |
|
|
Weight |
Front 110+Rear200=310g |
|
|
Summarize |
Lighter,better structure,better gear bite Smooth/Simple/Fast
|
|
