Ratchet System ：Star Ratchet
Ratchet Gear：36/60T
O.L.D:100/110/142/148mm
Hole:Front28H/Rear28H
|
Specification |

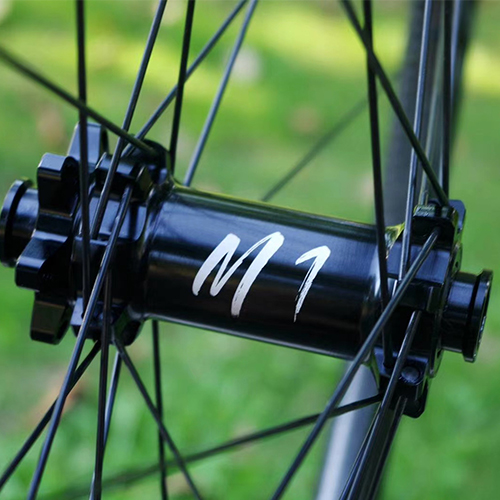

Hub Model:M1 |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
7075 T6 AL Alloy |
|
|
Axle |
|
|
|
Cassette Body |
|
|
Figure
|
Axle P.C.D |
Front15mm/Rear15mm |
|
|
Flange P.C.D |
53mm(L/R) |
|
|
O.L.D |
100/110/142/148mm |
|
|
WR Rear |
142=23.5mm/148=27mm |
|
|
The Distance From Drive Side Bearing to Frame |
57mm |
|
|
Hole |
Front28H/Rear28H |
|
|
Plait |
X3 Cross-over |
|
Bearing |
Brand |
Japan EZO Steel Ball |
|
|
Bearings name |
Front6902*2/Rear6902*2/Cassette6803*2 |
|
Cassette Ratchet System |
Occlusion type |
Star Ratchet |
|
|
Gear |
36/60T |
|
|
Occlusal angle |
10/6° |
|
Side Axle System |
Axle type |
Retainer Ring Type |
|
|
Installation |
Plug-in |
|
Seal Ring |
1pcs |
|
|
Cassette Body Model |
HG/XD/MS |
|
|
Usage Road |
XC/TR/AM |
|
|

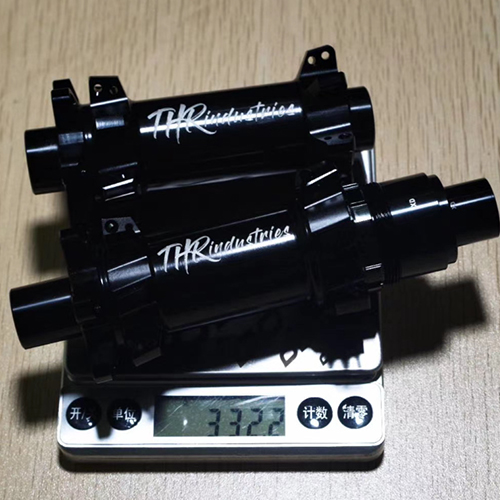

Weight |
Front 110+Rear215=325g |
|
|
Summarize |
Lighter,better,geometry,better bite Smooth/Simple/Fast |
|
