Ratchet System ：THR SSF
Ratchet Gear：45/72T
O.L.D:100/142mm
Hole：Front21H/Rear24H
|
Specification |
Hub Model:R2 Disc Brake |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
7075 T651 AL Alloy |
|
|
Axle |
|
|
|

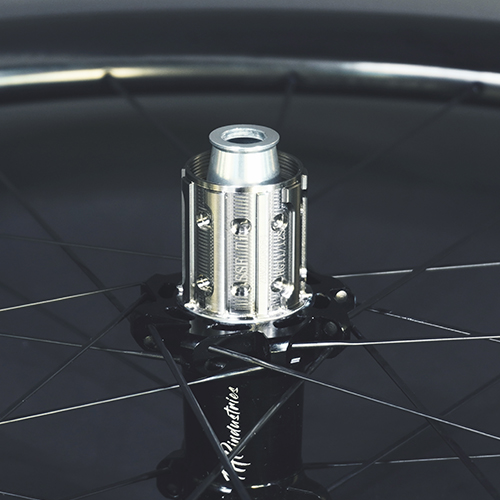

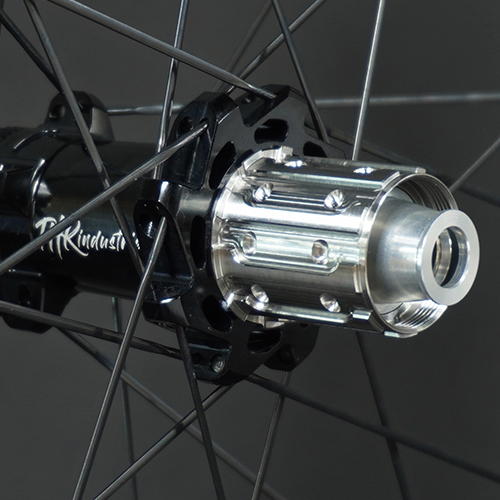

Cassette body |
TC4 Titanium Alloy |
|
Figure
|
Axle P.C.D |
Front17mm/Rear17mm |
|
|
Flange P.C.D |
Front:Disc50mm,Non33mm Rear:Disc45mm, Drive60mm |
|
|
O.L.D |
100/142mm |
|
|
WR rear |
22mm |
|
|
Flange distance |
Front 62mm/Rear56mm |
|
|
The Distance From Drive Side Bearing to Frame |
51.8mm |
|
|
Hole |
Front21H/Rear24H |
|
|
Plait |
2:1,X3 Cross-over |
|
Bearing |
Material |
TPI Steel ball/TPI Ceramic |
|
|
Sealed bearings |
Front6803*2/Rear6903*2+Cassette6803*2 |
|
Cassette Ratchet System |
Ratchet Type |
THR SSF Low Drag ratchet 45 gear bite |
|
|
Ratchet Gear |
45/72T |
|
|
Angle |
8/5° |
|
Side Axle System |
Interface |
Straight Pull quick release axle with bearing pre-compaction adjust |
|
|
Installation |
Plug-in |
|
Seal Ring |
Non |
|
|
Cassette body model |
HG/XDR |
|
|
Usage Road |
HG |
|
|
Weight |
Front 100+Rear210=310g |
|
|
Summarize |
Excellent Performance experience Bran-new structural design Smooth/Simple/Fast
|
|
