Ratchet System ：THR SSF
Ratchet Gear：45/72T
O.L.D100/110/142/148mm
Hole：Front28H/Rear28H
|
Specification |

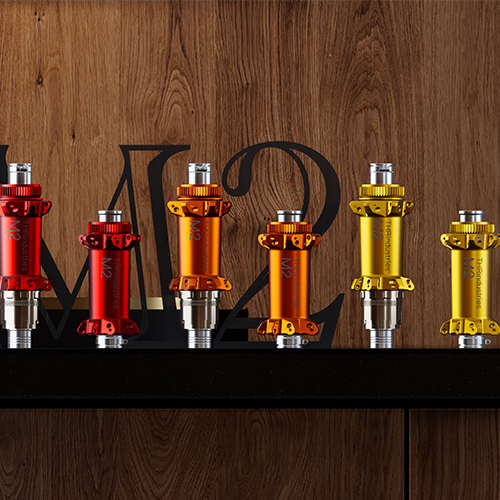

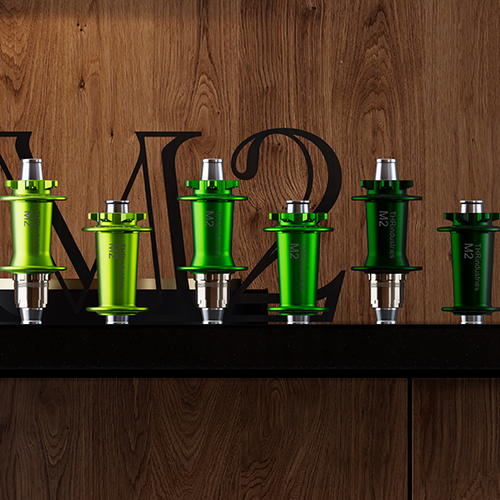

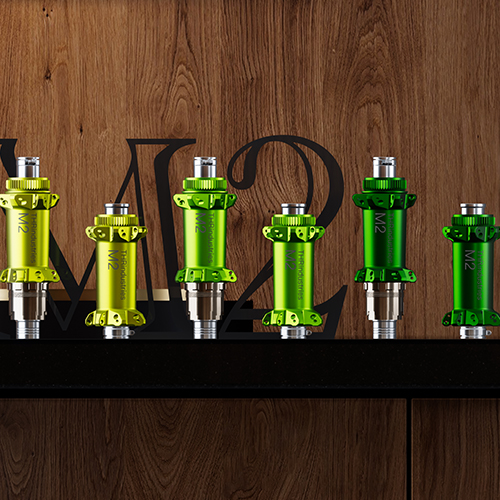

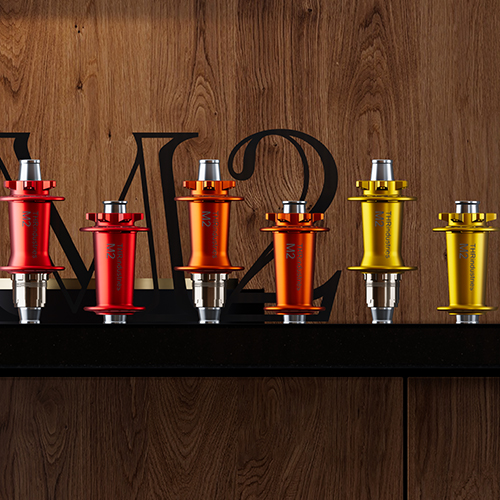

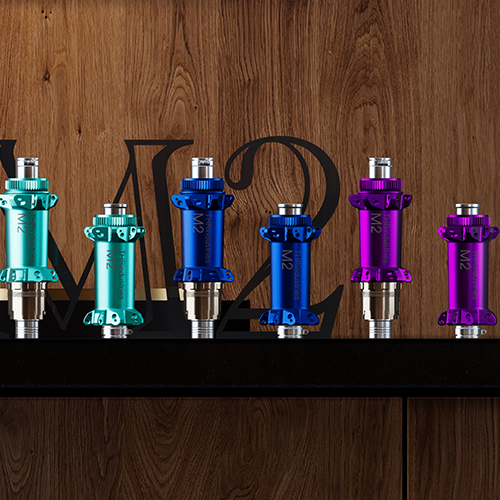

Hub Model:M2 Straightpull |
www.bike.cycle.com |
|
Item |
Part |
Description |
|
Material |
Hubshell |
AL alloy 7075 T651 |
|
|
Axle |
|
|
|
Cassette body |
Stainless Steel/Titanium Alloy |
|
Figure
|
Axle P.C.D |
Front17mm/Rear17mm |
|
|
Flange P.C.D |
53mm(L/R) |
|
|
O.L.D |
100/110/142/148mm |
|
|
WR rear |
142=23.5mm/148=27mm |
|
|
The Distance From Drive Side Bearing to Frame |
53mm |
|
|
Hole |
Front28H/Rear28H |
|
|
Pawl |
X3 Cross-over |
|
Bearing |
Brand |
Japan EZO steel ball |
|
|
Sealed bearings |
Front6903*2/Rear6902*2/Cassette6803*2 |
|
Cassette Ratchet System |
Ratchet Type |
THR SSF Low Drag |
|
|
Ratchet Gear |
45/72T |
|
|
Angle |
8/5° |
|
Side Axle System |
Interface |
Straight Pull quick release axle with bearing pre-compaction adjust |
|
|
Installation |
Plug-in |
|
Seal Ring |
Non |
|
|
Cassette body model |
HG/XD/MS |
|
|
Usage Road |
XC/TR/AM/Enduro |
|
|
Weight |
325g Ti alloy cassette with pre-compaction |
|
|
Summarize |
Excellent Performance experience Bran-new structural design Smooth/Simple/Fast
|
|
